WASTE PAPER SHREDDING COMPONENT AND DEVICE
关于老挝专利「WASTE PAPER SHREDDING COMPONENT AND DEVICE」，老商通整理了如下公开信息，由 BEIJING KING MAHLON SCIENCE & TECHNOLOGY DEVELOPMENT CO., LTD. 于 2017-04-05 提交申请，当前状态为已注册。标识字段包括：申请号 P/617；DIP 编号 LAP617；主管局代码 LA；保护类型 Patent - PCT National Phase。时间线要点：公开/公告日 2023-01-13；授权日 2023-01-13；届满/失效参考日 2037-04-05。技术或外观分类记载为 B02C 18/00、B02C 18/18。发明人 / 设计人包括 Xinghang SUN。代理机构 / 代理人记载为 CONCETTI-LAO CO., LTD。公开摘要提示：Disclosed are a waste paper shredding component and device. The waste paper shredding。
P/617
图样
基础信息
- 类型
- 专利
- 申请号
P/617- 状态
- 已注册
- 申请人
- BEIJING KING MAHLON SCIENCE & TECHNOLOGY DEVELOPMENT CO., LTD.
- 代理机构
- CONCETTI-LAO CO., LTD
- 申请日期
- 2017-04-05
- 注册号
P/617- 公开 / 公告日
- 2023-01-13
- 注册 / 授权日
- 2023-01-13
- 到期日
- 2037-04-05
- 保护类型
- Patent - PCT National Phase
- 公报号
- 189 · 2023-01-13
- 优先权
- CN · 201620284731.8 · 2016-04-07
- 申请人地址
- BEIJING KING MAHLON SCIENCE & TECHNOLOGY DEVELOPMENT CO., LTD. · Room 3017, Floor 26, No.19, Madian East Road, Haidian District, Beijing, 100088, China · CN
- 代理地址
- CONCETTI-LAO CO., LTD · Lao-Thai Friendship Road, Sokpaluang Village,Sisattanak District, Vientiane Lao PDR, Tel: 312 383 · LA
- 国际分类
- B02C 18/00 · B02C 18/18
- 商品 / 服务
- —
办理流程
根据当前状态动态标注-
提交申请
-
形式审查
-
实质审查
-
公开
-
授权
关联分析
LaoBiz.com 企业数据库联动类似专利推荐
摘要
Disclosed are a waste paper shredding component and device. The waste paper shredding
component comprises: a knife roller, which is rotatable about its axis; a flying knife (10'), which
is mounted onthe knife roller and comprises a first blade portion (ll'); a knife holder;anda
bottom knife (20'), which is mounted on the knife holder. The bottom knife comprises a second
blade portion (21') that engages with the first blade portion to cut off waste paper, and the

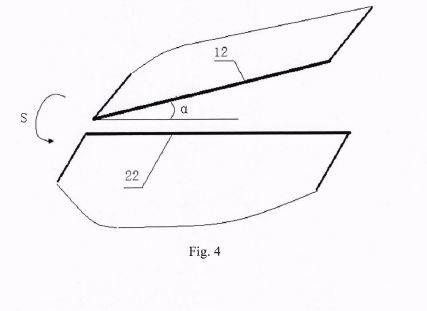

second blade portion extends in a direction along the axis of the knife roller. The first blade
portion (11') is inclined with respect to the second blade portion, such that when the knife roller
rotates, the first blade portion can progressively engage with the second blade portion from a

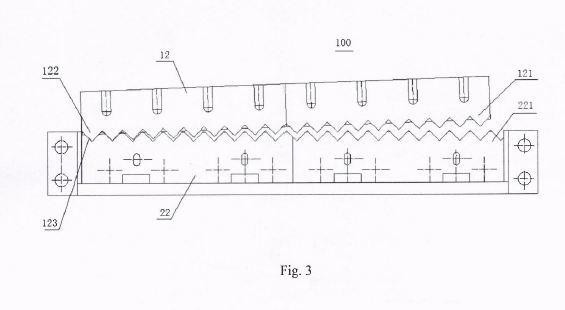

first end thereof. Teeth (12') which engage with each other are formed at least at the first end
and a part of the second blade portion corresponding to the first end.
Disclosed are a waste paper shredding component and device. The waste paper shredding
component comprises: a knife roller, which is rotatable about its axis; a flying knife (10'), which
is mounted onthe knife roller and comprises a first blade portion (ll'); a knife holder;anda
bottom knife (20'), which is mounted on the knife holder. The bottom knife comprises a second
blade portion (21') that engages with the first blade portion to cut off waste paper, and the
second blade portion extends in a direction along the axis of the knife roller. The first blade
portion (11') is inclined with respect to the second blade portion, such that when the knife roller
rotates, the first blade portion can progressively engage with the second blade portion from a
first end thereof. Teeth (12') which engage with each other are formed at least at the first end
and a part of the second blade portion corresponding to the first end.
