VERTICAL-SHAFT WINDMILL
老挝专利「VERTICAL-SHAFT WINDMILL」是 DIP 公开可查的知识产权档案，由 GLOBAL ENERGY CO., LTD 于 2021-12-02 提交申请，当前状态为等待形式审查。公开档案中可核验：申请号 P/897，DIP 编号 LAP897，主管局代码 LA，保护类型 Patent - PCT National Phase。时间线要点：公开/公告日 2026-04-03。国际分类 / IPC 标注为 F03D 3/02、F03D 3/06。发明人 / 设计人包括 SUZUKI Masahiko。代理机构 / 代理人记载为 CONCETTI-LAO CO., LTD。公开摘要提示：A vertical-shaft wind turbine having a plurality of lifrtype vertical blades arranged around a vertical main shaft of a vertical shaft roto…。
This Laos Patent “VERTICAL-SHAFT WINDMILL” is a public DIP intellectual-property record, filed by GLOBAL ENERGY CO., LTD on 2021-12-02; current status: Awaiting formal examination. Identifiers include application No. P/897; DIP id LAP897; protection kind Patent - PCT National Phase. Key dates: publication 2026-04-03. Classification: F03D 3/02、F03D 3/06. Inventor(s)/designer(s): SUZUKI Masahiko. Abstract hint: A vertical-shaft wind turbine having a plurality of lifrtype vertical blades arranged around a vertical main shaft of a vertical shaft roto…. This prose is informational only and does not constitute legal advice, ownership proof or an infringement opinion.
ກ່ຽວກັບ ສິດທິບັດ «VERTICAL-SHAFT WINDMILL» ໃນລາວ, ຍື່ນໂດຍ GLOBAL ENERGY CO., LTD ໃນວັນທີ 2021-12-02; ສະຖານະ ລໍຖ້າກວດຮູບແບບ. ຕົວລະບຸ: ເລກທີຄຳຮ້ອງ P/897; ລະຫັດ DIP LAP897; ປະເພດການປົກປ້ອງ Patent - PCT National Phase. ວັນທີສຳຄັນ: ວັນເຜີຍແຜ່ 2026-04-03. ປະເພດ/ຫ້ອງ: F03D 3/02、F03D 3/06. ນັກປະດິດ/ນັກອອກແບບ: SUZUKI Masahiko. ສະຫຼຸບ: A vertical-shaft wind turbine having a plurality of lifrtype vertical blades arranged around a vertical main shaft of a vertical shaft roto…. ໃຊ້ LaoBiz ເພື່ອເບິ່ງ IP ອື່ນຂອງຜູ້ຍື່ນຄົນດຽວ ຫຼື ໜ້າວິສາຫະກິດທີ່ກ່ຽວຂ້ອງ.
P/897
图样
基础信息
- 类型
- 专利
- 申请号
P/897- 状态
- 等待形式审查
- 申请人
- GLOBAL ENERGY CO., LTD
- 代理机构
- CONCETTI-LAO CO., LTD
- 申请日期
- 2021-12-02
- 公开/公告日
- 2026-04-03
- 国际分类
- F03D 3/02 · F03D 3/06
- 商品 / 服务
- —
办理流程
根据当前状态动态标注-
提交申请
-
形式审查 进行中
-
实质审查
-
公开
-
授权
关联分析
LaoBiz 企业数据库联动类似专利推荐
摘要

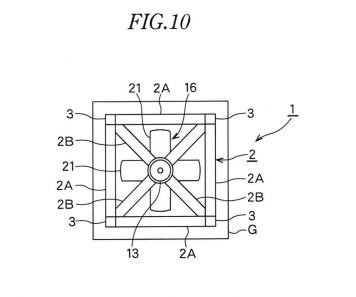

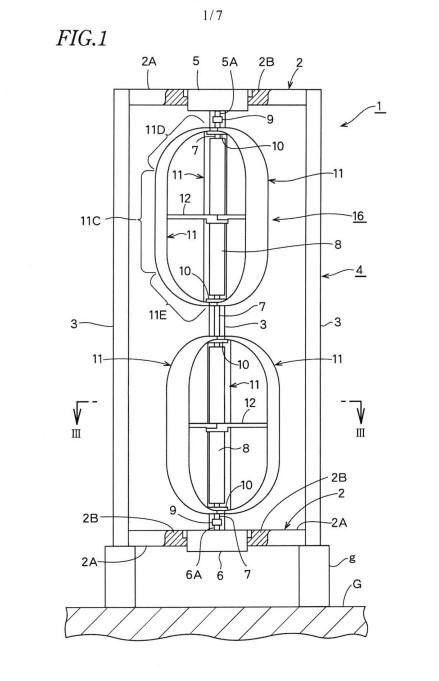

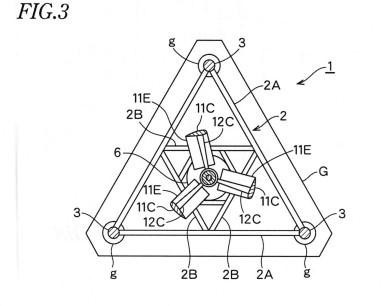

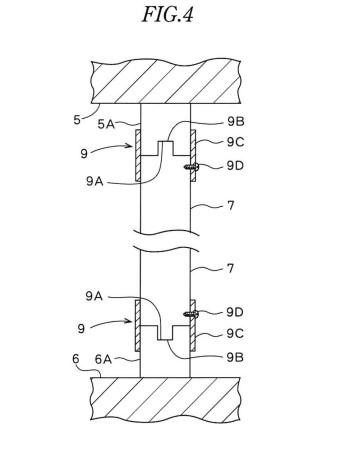

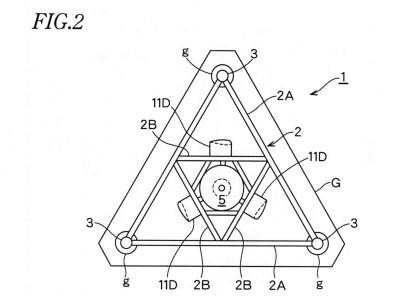

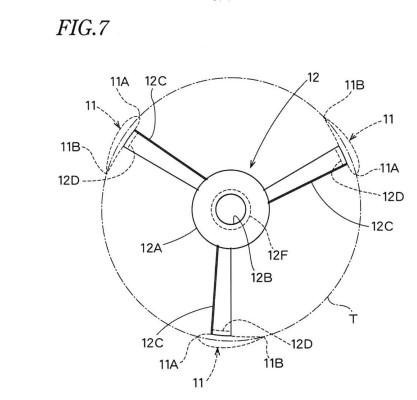

A vertical-shaft wind turbine having a plurality of lifrtype vertical blades arranged around a vertical main shaft of a vertical shaft rotor, the vertical-shaft wind turbine includes a support frame body which is framed with horizontal frame bodies horizontally arranged in upper and lower stages and a plurality of supporl poles, and a generator which is horizontally arranged in each plane central portion in the horizontal frame bodies, upper and lower end portions of the vertical main shaft of the vertical shaft rotor are respectively and directly coupled between the both rotation shafts of the upper and lower generators facing each other without using bearings, and an outer peripheral side of each seam of coupling portions formed by said coupling is sheathed with a covering body for preventing decoupling, thereby reducing torsion and vibration when rotating.
A vertical-shaft wind turbine having a plurality of lifrtype vertical blades arranged around a vertical main shaft of a vertical shaft rotor, the vertical-shaft wind turbine includes a support frame body which is framed with horizontal frame bodies horizontally arranged in upper and lower stages and a plurality of supporl poles, and a generator which is horizontally arranged in each plane central portion in the horizontal frame bodies, upper and lower end portions of the vertical main shaft of the vertical shaft rotor are respectively and directly coupled between the both rotation shafts of the upper and lower generators facing each other without using bearings, and an outer peripheral side of each seam of coupling portions formed by said coupling is sheathed with a covering body for preventing decoupling, thereby reducing torsion and vibration when rotating.
