Semi pre-fabricated wall panel
关于老挝专利「Semi pre-fabricated wall panel」，老商通整理了如下公开信息，由 Mr.Rungrith Kittayapong 于 2019-03-29 提交申请，当前状态为等待形式审查。标识字段包括：申请号 P/651；DIP 编号 LAP651；主管局代码 LA；保护类型 Patent - Foreign。时间线要点：公开/公告日 2026-01-09。国际分类 / IPC 标注为 E04B 2/00。发明人 / 设计人包括 Mr.Rungrith Kittayapong。代理机构 / 代理人记载为 CONCETTI-LAO CO., LTD。公开摘要提示：The semi pre-fabricated wall panel consists of a left side partition wall with a rack of grate。
P/651

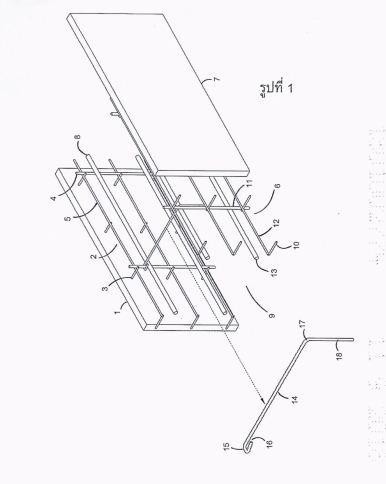

图样
基础信息
- 类型
- 专利
- 申请号
P/651- 状态
- 等待形式审查
- 申请人
- Mr.Rungrith Kittayapong
- 代理机构
- CONCETTI-LAO CO., LTD
- 申请日期
- 2019-03-29
- 公开 / 公告日
- 2026-01-09
- 保护类型
- Patent - Foreign
- 优先权
- TH · 1801002774 · 2018-10-05
- 申请人地址
- Mr.Rungrith Kittayapong · 36/119 Soi Thaweewattana 14, Thweewattana Sub-district Thaweewattana Distrct, Bangkok 10170 Thailand · TH
- 代理地址
- CONCETTI-LAO CO., LTD · Lao-Thai Friendship Road, Sokpaluang Village,Sisattanak District, Vientiane Lao PDR, Tel: 312 383 · LA
- 国际分类
- E04B 2/00
- 商品 / 服务
- —
办理流程
根据当前状态动态标注-
提交申请
-
形式审查 进行中
-
实质审查
-
公开
-
授权
关联分析
LaoBiz.com 企业数据库联动类似专利推荐
摘要
The semi pre-fabricated wall panel consists of a left side partition wall with a rack of grate
on the inner side ofthe left side partition wall. One part ofthe grate is inbuilt into the inner side
ofthe left side partition wall while the other part protrudes out functioning as a left side abiding
bar to be connected an outer left vertical abiding bar or an outer left horizontal abiding bar while
it is adhered to a rack of grate on the inner side ofthe right side partition wall.
For the right side partition wall, there will be a rack ofgrate on the inner side ofthe right
side partition wall. One part ofthe grate is inbuilt into the inner side ofthe right side partition
wall while the other part protrudes out functioning as aright side abiding bar to be connected an
outer right vertical abiding bar or an outer right horizontal abiding bar while it is adhered to a
rack ofgrate on the inner side ofthe left side partition wall. Between the rack ofgrate on the inner
side ofthe Ieft side partition wall and the rack of grate on the inner side ofthe right side partition
wall, there will be a supportive bar in between. This is in the form ofa long bar with a curved left
tip with the end that can be opened and closed. This end can be inserted or enfolded onto a part
ofthe rack of grate on the inner side ofthe left side partition wall. At the same time, the right side
ofthe supportive bar between the two side partition walls is casted in curved so that the right tip
can be a hook attaching to a part ofthe rack of grate on the inner side ofthe right partition wall.
The semi pre-fabricated wall panel consists of a left side partition wall with a rack of grate
on the inner side ofthe left side partition wall. One part ofthe grate is inbuilt into the inner side
ofthe left side partition wall while the other part protrudes out functioning as a left side abiding
bar to be connected an outer left vertical abiding bar or an outer left horizontal abiding bar while
it is adhered to a rack of grate on the inner side ofthe right side partition wall.
For the right side partition wall, there will be a rack ofgrate on the inner side ofthe right
side partition wall. One part ofthe grate is inbuilt into the inner side ofthe right side partition
wall while the other part protrudes out functioning as aright side abiding bar to be connected an
outer right vertical abiding bar or an outer right horizontal abiding bar while it is adhered to a
rack ofgrate on the inner side ofthe left side partition wall. Between the rack ofgrate on the inner
side ofthe Ieft side partition wall and the rack of grate on the inner side ofthe right side partition
wall, there will be a supportive bar in between. This is in the form ofa long bar with a curved left
tip with the end that can be opened and closed. This end can be inserted or enfolded onto a part
ofthe rack of grate on the inner side ofthe left side partition wall. At the same time, the right side
ofthe supportive bar between the two side partition walls is casted in curved so that the right tip
can be a hook attaching to a part ofthe rack of grate on the inner side ofthe right partition wall.
