AN ELECTRIC GENERATOR HAVING A CENTRAL MAGNETIC SHAFT
关于老挝专利「AN ELECTRIC GENERATOR HAVING A CENTRAL MAGNETIC SHAFT」，老商通整理了如下公开信息，由 The Trustees for the time being of the KMN FULFILMENT TRUST 于 2018-04-06 提交申请，当前状态为已注册。关键编号与类型标注为 申请号 P/582 / DIP 编号 LAP582 / 主管局代码 LA / 保护类型 Patent - Foreign。时间线要点：公开/公告日 2023-01-13；授权日 2023-01-12；届满/失效参考日 2038-04-06。技术或外观分类记载为 H02K 16/00、H02K 21/04。发明人 / 设计人包括 MAKGERU, Kabu Walter。代理机构 / 代理人记载为 ZICOlaw (Laos) Sole co.,Ltd.。公开摘要提示：An electric generator has a the stator comprises a central shaft and has at least one axially-offset coil at an axial end of the central sh…。
P/582
图样
基础信息
- 类型
- 专利
- 申请号
P/582- 状态
- 已注册
- 申请人
- The Trustees for the time being of the KMN FULFILMENT TRUST
- 代理机构
- ZICOlaw (Laos) Sole co.,Ltd.
- 申请日期
- 2018-04-06
- 注册号
P/582- 公开 / 公告日
- 2023-01-13
- 注册 / 授权日
- 2023-01-12
- 到期日
- 2038-04-06
- 保护类型
- Patent - Foreign
- 公报号
- 189 · 2023-01-13
- 优先权
- ZA · 12/08/2016 · 2016-08-12
- 申请人地址
- The Trustees for the time being of the KMN FULFILMENT TRUST · 8 Kestrel Street, Ebotse Golf Estate, Rynfield, 1504 BENONI, South Africa · ZA
- 代理地址
- ZICOlaw (Laos) Sole co.,Ltd. · 1st floor, Vieng Vang Tower, Unit 15, Bourichane Road, Dongpalane Thong Village, Sisatthanak District, Vientiane Capital, Lao PDR · LA
- 国际分类
- H02K 16/00 · H02K 21/04
- 商品 / 服务
- —
办理流程
根据当前状态动态标注-
提交申请
-
形式审查
-
实质审查
-
公开
-
授权
关联分析
LaoBiz.com 企业数据库联动类似专利推荐
摘要

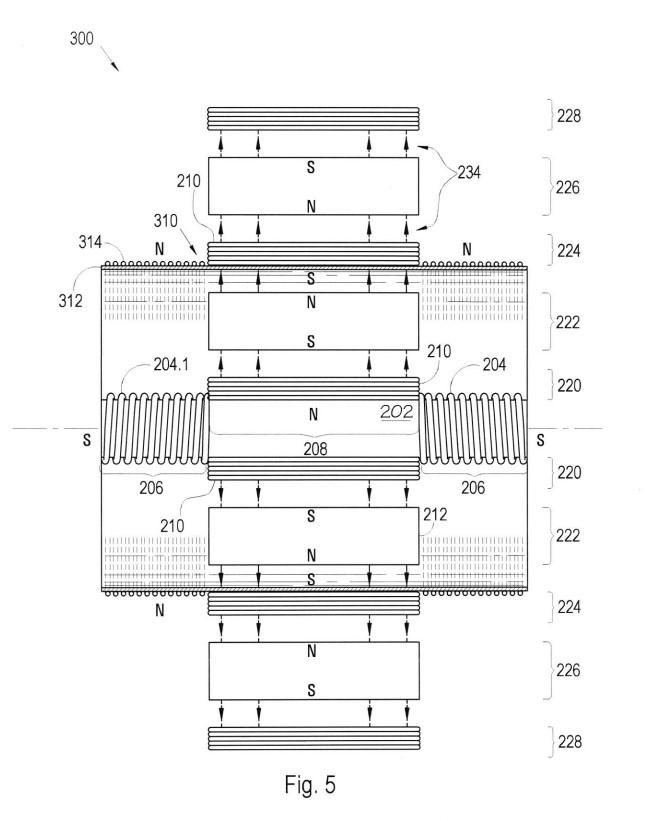

An electric generator has a the stator comprises a central shaft and has at least one axially-offset coil at an axial end of the central shaft such that a major central portion of the central shaft is not surrounded by the coil. The stator comprises a plurality of generating layers, each generating layer comprising generating windings radially aligned with the major central portion of the central shaft. A rotor comprises a magnetising layer arranged co-axially around the first generating layer and radially aligned with the major central portion. The generator has at least one of the generating layers is in the form of a tubular assembly comprising a tubular body which is co-axial with the central shaft and at least one axially-offset coil at an axial end of the tubular body such that a major central portion of the tubular body is not
surrounded by the coil.
An electric generator has a the stator comprises a central shaft and has at least one axially-offset coil at an axial end of the central shaft such that a major central portion of the central shaft is not surrounded by the coil. The stator comprises a plurality of generating layers, each generating layer comprising generating windings radially aligned with the major central portion of the central shaft. A rotor comprises a magnetising layer arranged co-axially around the first generating layer and radially aligned with the major central portion. The generator has at least one of the generating layers is in the form of a tubular assembly comprising a tubular body which is co-axial with the central shaft and at least one axially-offset coil at an axial end of the tubular body such that a major central portion of the tubular body is not
surrounded by the coil.
