DECORATIVE CAP, BOTTLE CAP COMPRISING SAME, AND BOTTLE STRUCTURE
「DECORATIVE CAP, BOTTLE CAP COMPRISING SAME, AND BOTTLE STRUCTURE」对应一条老挝专利公开记录，由 Inner Mongolia Yili Industrial Group Co., Ltd 于 2019-05-07 提交申请，当前状态为已注册。关键编号与类型标注为 申请号 E/54 / DIP 编号 LAE54 / 主管局代码 LA / 保护类型 Petty Patent。时间线要点：公开/公告日 2022-10-28；授权日 2022-10-24；届满/失效参考日 2029-05-07。发明人 / 设计人包括 YANG, Jie。代理机构 / 代理人记载为 CONCETTI-LAO CO., LTD。公开摘要提示：The present utility model discloses a decorative cover, and a bottle cover and a bottle。您可在站内继续浏览同申请人其它知识产权，或经企业详情查看更多关联资产与登记信息。
E/54
图样
基础信息
- 类型
- 专利
- 申请号
E/54- 状态
- 已注册
- 申请人
- Inner Mongolia Yili Industrial Group Co., Ltd
- 代理机构
- CONCETTI-LAO CO., LTD
- 申请日期
- 2019-05-07
- 注册号
E/54- 公开 / 公告日
- 2022-10-28
- 注册 / 授权日
- 2022-10-24
- 到期日
- 2029-05-07
- 保护类型
- Petty Patent
- 公报号
- 178 · 2022-10-28
- 优先权
- CN · 201720443564.1 · 2017-04-25
- 申请人地址
- Inner Mongolia Yili Industrial Group Co., Ltd · No.1 Jinshan Avenue , Jinshan Development Zone, Hohhot City, Inner Mongolia 010110, China · CN
- 代理地址
- CONCETTI-LAO CO., LTD · Lao-Thai Friendship Road, Sokpaluang Village,Sisattanak District, Vientiane Lao PDR, Tel: 312 383 · LA
- 国际分类
- —
- 商品 / 服务
- —
办理流程
根据当前状态动态标注-
提交申请
-
形式审查
-
实质审查
-
公开
-
授权
关联分析
LaoBiz.com 企业数据库联动类似专利推荐
摘要

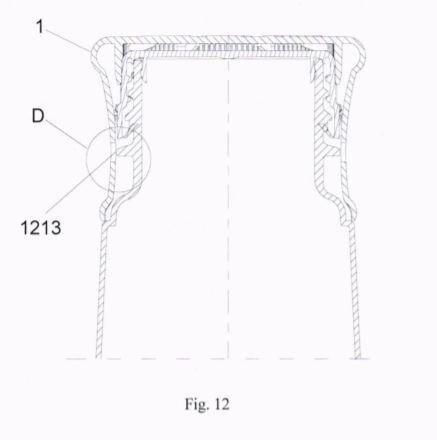

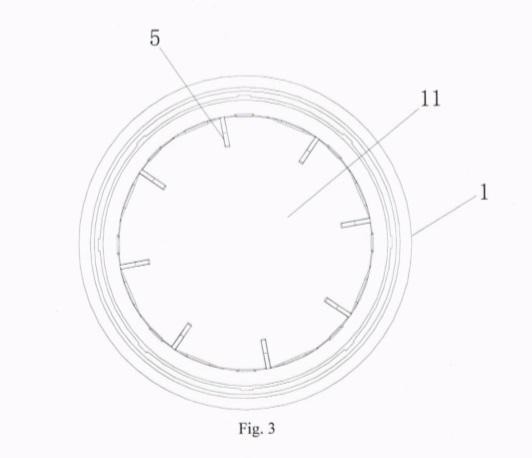

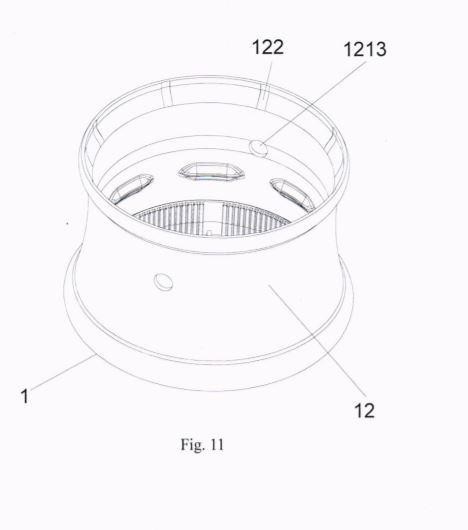

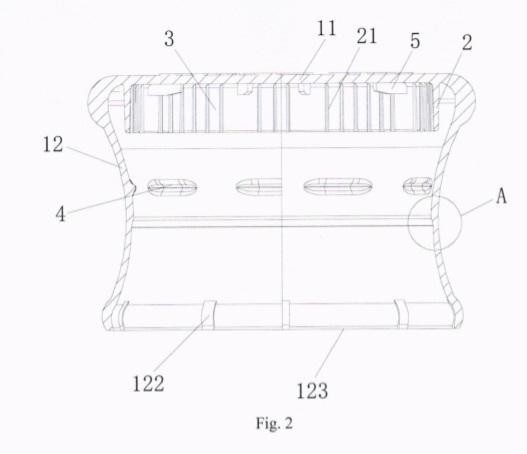

The present utility model discloses a decorative cover, and a bottle cover and a bottle
body structure comprising the decoralive cover. The decorative cover comprises a cover body
(1); the cover body comprises a top cover (11), and an annular sidewall (12) with waistlines
shrinking; the sidewall (12) comprises an avoidance structure (121) located on an inner surface of the sidewall (12) for avoiding an edge of a support ring of a bottle body, and
grooves (122) located at a bottom edge ofthe inner surface of the sidewall (12); a gap cavity
is formed between the avoidance structure (121) and a corresponding outer wall surface ofthe
bottle body; top portions ofthe grooves (122) are in communication with the gap cavity, and bottom portions ofthe grooves (122) is provided in communication with a bottom surface of
the sidewall (12). The decorative cover provided by the present utility model, and the bottle
cover and the bottle body structure comprising the decorative cover can realize the air
circulation between the decorative cover and a sealing cover or between the decorative cover
and the bottle body, so that water or liquid remaining on the bottle body or a cover body of the
sealing cover is quickly dried.
The present utility model discloses a decorative cover, and a bottle cover and a bottle
body structure comprising the decoralive cover. The decorative cover comprises a cover body
(1); the cover body comprises a top cover (11), and an annular sidewall (12) with waistlines
shrinking; the sidewall (12) comprises an avoidance structure (121) located on an inner surface of the sidewall (12) for avoiding an edge of a support ring of a bottle body, and
grooves (122) located at a bottom edge ofthe inner surface of the sidewall (12); a gap cavity
is formed between the avoidance structure (121) and a corresponding outer wall surface ofthe
bottle body; top portions ofthe grooves (122) are in communication with the gap cavity, and bottom portions ofthe grooves (122) is provided in communication with a bottom surface of
the sidewall (12). The decorative cover provided by the present utility model, and the bottle
cover and the bottle body structure comprising the decorative cover can realize the air
circulation between the decorative cover and a sealing cover or between the decorative cover
and the bottle body, so that water or liquid remaining on the bottle body or a cover body of the
sealing cover is quickly dried.
